Specification ( 規格 | 仕様 )

SPECIFICATION and Advantages:





TransformCube are patent pending multipurpose cube form factor building beads. It is invented to solve three dimensional cube to cube connection problem. They have 3 type symmetry design & machine aesthetics beads & can assembly complex structure with joint features. They can function as toys, utilities and fidgeting. This 18 mm cube-shaped building block has six holes on its surface and two holes can swap to plug. All plug & socket in center of each face so it can connect other turn at any angle. Additionally, the arch block act as joint device and using it to design joint system. Frame and plate/sheet can assembly for build large structure. Assembly them work like 3D printing (voxel) so they can assembly virtually everything & promote creativity.

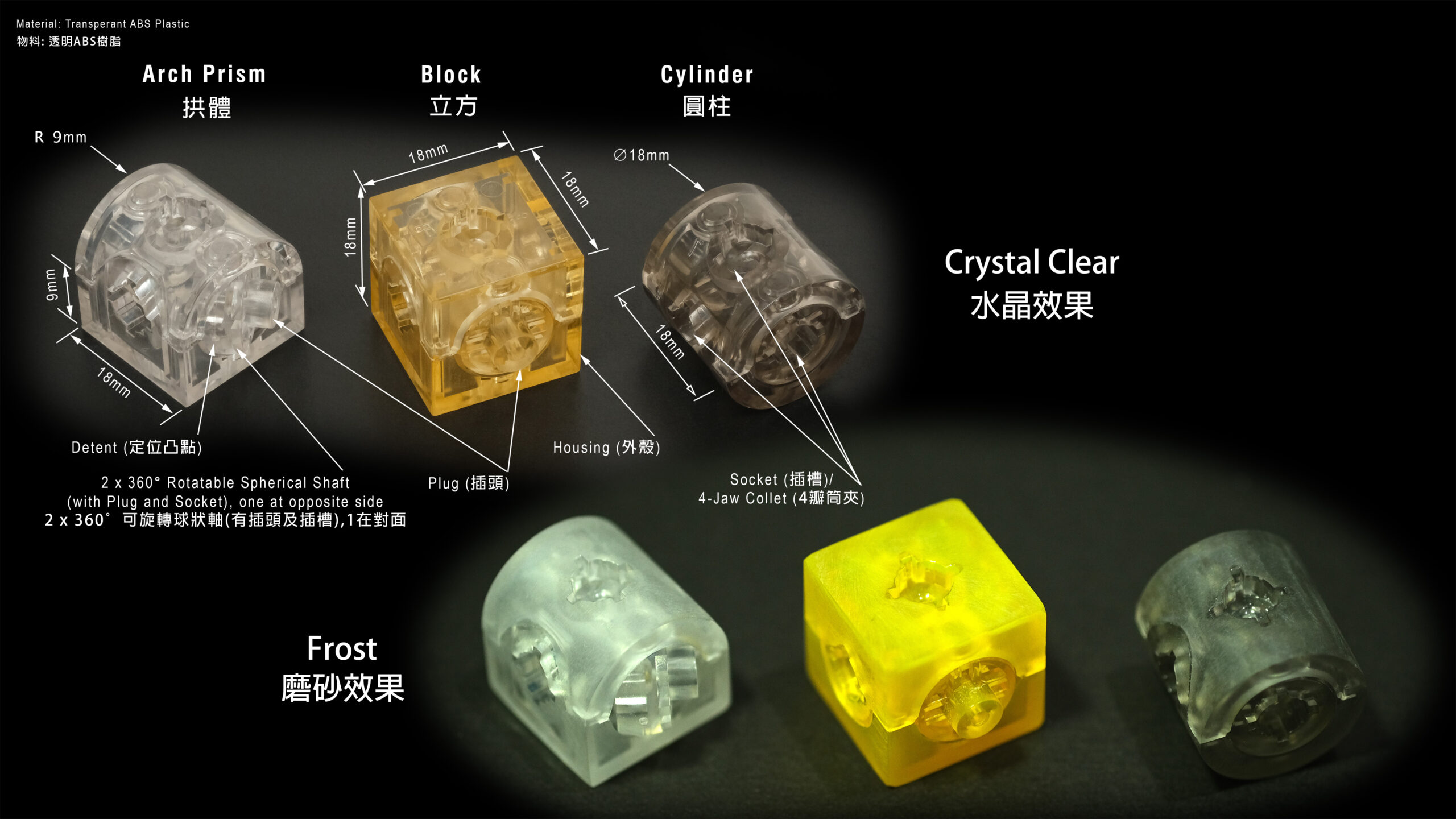

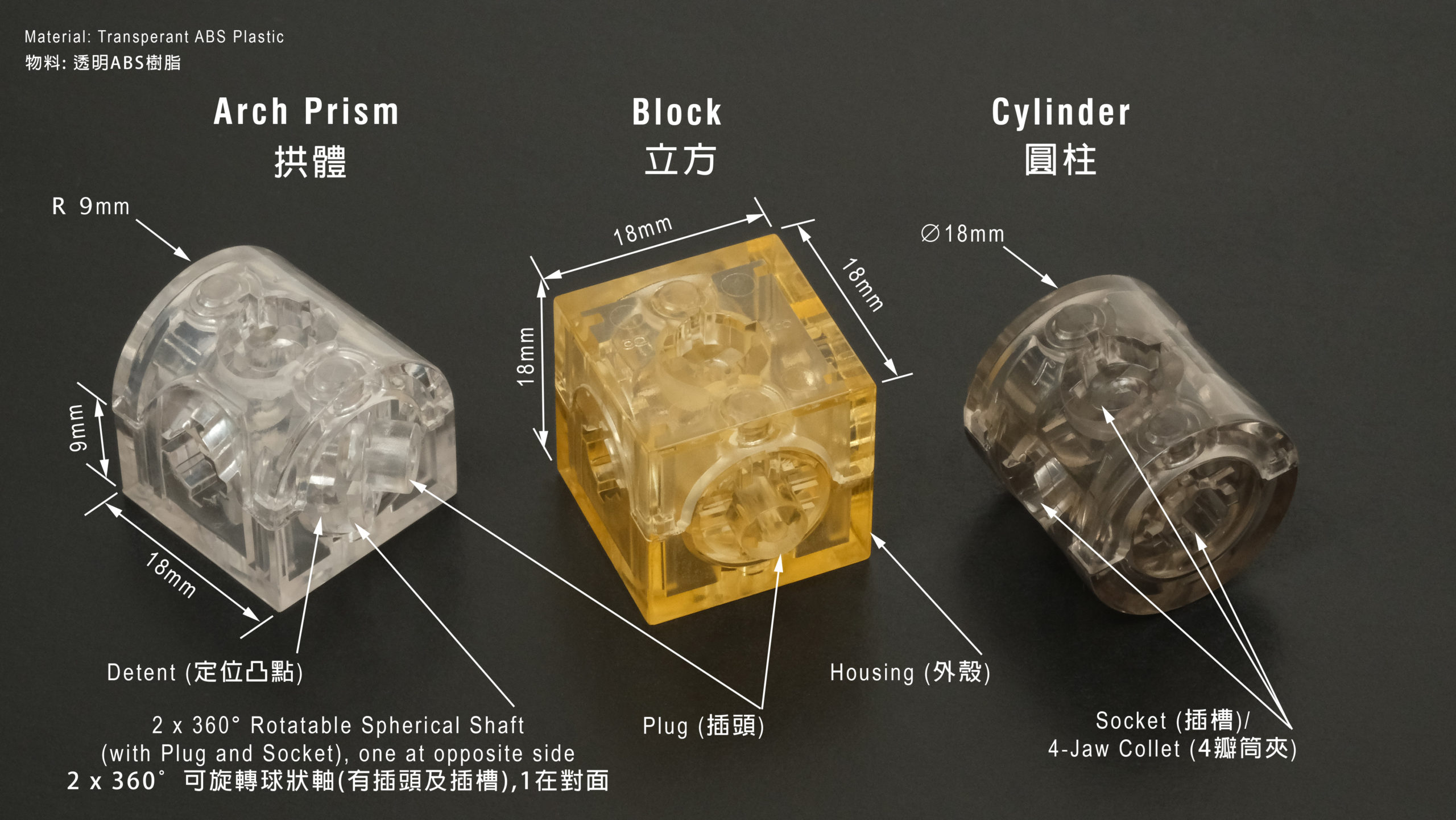

Specification - Parts and description of three type of building beads
Specification - Parts and description of three type of building beads

1) Building beads designed in cube form factor and alter to three main type – Arch, Block and Cylinder.
2) Symmetry design, machine aesthetics, precision as mechanical device
3) All plug & socket in center of each face so it can connect other beads and turn it at any angle
4) Can swap all plug to socket so no projecting plug
5) Scale-able – can assembly small and large scale object depend on you have how many beads , multi-purpose (assembly toys and practical applications)
6) Can assembly hinge, shaft and slide bar system etc..
7) Can assembly 3D characters, word and text, symbols etc
8) Each bead has 2 through socket, 2 blind socket and 2 spherical shaft (plug/socket swap-able)
9) You can design your own parts, stress concentration portion may use double side tape or glue to reinforcement
10) Assembly tools for making another designs





Material: ABS Plastic (Ultrasonic Welding)
Size: 18mm each side





Socket (Clamp) and Plug: Special design 4 jaw clamps using ABS elasticity to grip same property cylindrical hollow plugs





Advantage:





  1. Each building block can be reused for any other project.
  2. Basically using the 3 basic type (Arch, Block and Cylinder) can build all.
  3. All plugs can hide so all parts can freely adjust angle, sliding and moving.
  4. can assembly frame and plate/sheet (large flat surface) easily because it is in cube form factor.
